| Parameter Item | Nominal Value | Tolerance | Unit |
| Wire Diameter | 14.0 | ±0.15 | mm |
| Outer Diameter | 164.0 | ±1.5 | mm |
| Inner Diameter | 136.0 | ±1.5 | mm |
| Free Length | 352.0 | ±3.0 | mm |
| Total Coils | 7.0 | ±0.25 | Coils |
| Active Coils | 5.5 | ±0.25 | Coils |
| Direction | Right-hand | — | / |
| End Type | Closed & Ground Flat | — | / |
| Spring Rate | 225 | ±4% | N/mm |
| Hardness | 45–48 | ±2 | HRC |
OEM Part Number:546302S100
Replaced by: 546302S100DS (Latest Revision)

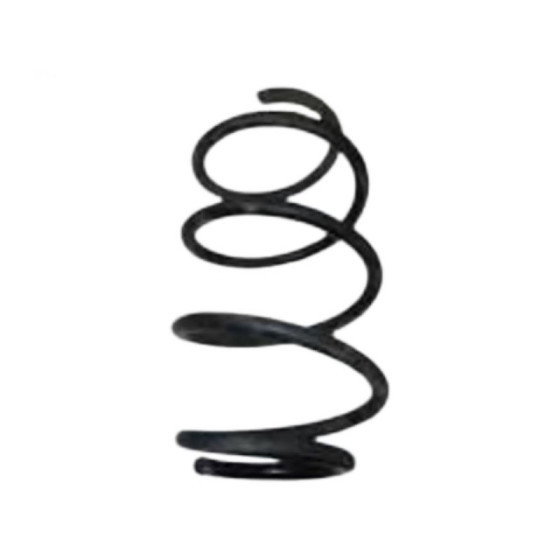

Product Name: Front Suspension Coil Compression Spring
Application: Hyundai ix35 / Tucson (LM) 2010–2015 2.0L / 2.4L
Position: Front Axle, Left & Right Universal
Weight: 2.85 kg (6.28 lbs)
Material: 55CrSi / SUP9 High Strength Chromium Silicon Spring Steel
Quality Standard: ISO/TS16949, JIS G 4801
Recommended Replacement: Replace in pairs (LH+RH)
Warranty: 1 Year / 80,000 km
