| Parameter Item | Nominal Value | Tolerance | Unit |
| Wire Diameter | 15.0 | ±0.15 | mm |
| Outer Diameter | 148.0 | ±1.5 | mm |
| Inner Diameter | 118.0 | ±1.5 | mm |
| Free Length | 305.0 | ±3.0 | mm |
| Total Coils | 6.8 | ±0.25 | Coils |
| Active Coils | 5.5 | ±0.25 | Coils |
| Direction | Right-hand | — | / |
| End Type | Closed & Ground Flat | — | / |
| Spring Rate | 480 | ±4.0% | N/mm |
| Hardness | 47–49 | ±2 | HRC |
OEM Part Number: 55330-2B231
Alternate OE: 55330-2B231-DS, 553302B231
Replaces: 55330-2B201

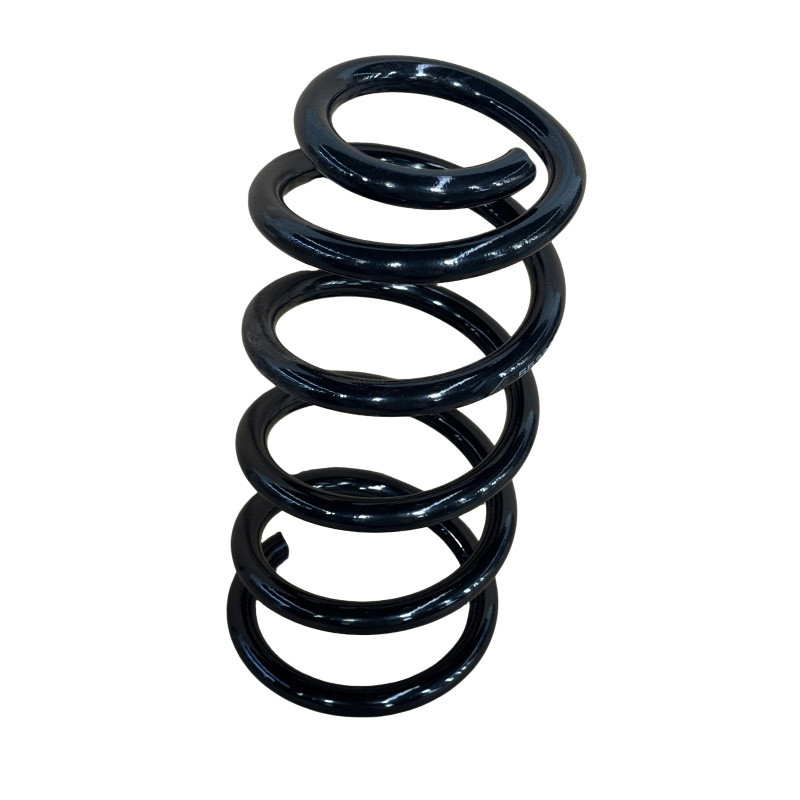

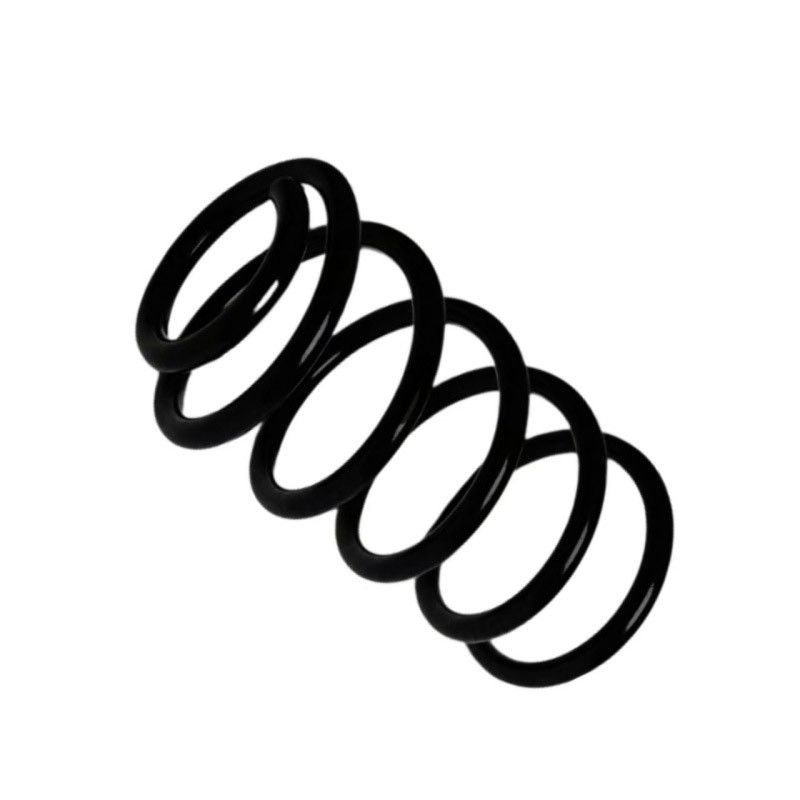

Product Name: Rear Suspension Coil Compression Spring
Application: Hyundai Santa Fe (2010–2012) 5-passenger AWD/4WD
Position: Rear Axle, Left & Right Universal
Weight: 3.85 kg (8.49 lbs)
Material: 60Si2Mn / SUP9 High Strength Spring Steel
Quality Standard: ISO/TS16949, JIS G 4801
Recommended Replacement: Replace in pairs (LH+RH)
Warranty: 2 Years / 100,000 km
