| Parameter Item | Nominal Value | Tolerance | Unit |
| Wire Diameter | 14.0 | ±0.15 | mm |
| Outer Diameter | 142.0 | ±1.5 | mm |
| Inner Diameter | 114.0 | ±1.5 | mm |
| Free Length | 335.0 | ±3.0 | mm |
| Total Coils | 7.2 | ±0.25 | Coils |
| Active Coils | 6.0 | ±0.25 | Coils |
| Direction | Right-hand | — | / |
| End Type | Closed & Ground Flat | — | / |
OEM Part Number: 55330-2E600
Alternate OE: 553302E600, S553302E600, SA553302E600

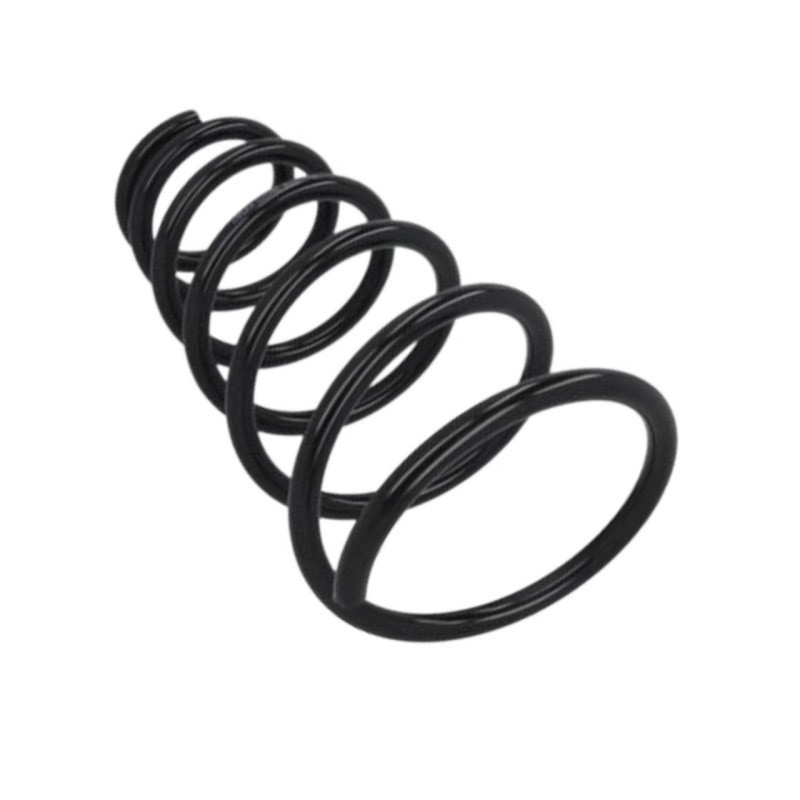

Product Name: Rear Suspension Coil Compression Spring
Application: Hyundai Tucson (JM) 2.0L / 2.7L (2005–2010)
Position: Rear Axle, Left & Right Universal
Weight: 3.45 kg (7.61 lbs)
Material: 60Si2Mn / SUP9 High Strength Spring Steel
Quality Standard: ISO/TS16949, JIS G 4801
Recommended Replacement: Replace in pairs (LH+RH)
Warranty: 2 Years / 100,000 km
