| Parameter Item | Nominal Value | Tolerance | Unit |
| Wire Diameter | 14.0 | ±0.15 | mm |
| Outer Diameter | 155.0 | ±1.5 | mm |
| Inner Diameter | 127.0 | ±1.5 | mm |
| Free Length | 338.0 | ±3.0 | mm |
| Total Coils | 6.6 | ±0.25 | Coils |
| Active Coils | 5.0 | ±0.25 | Coils |
| Direction | Right-hand | — | / |
| End Type | Closed & Ground Flat | — | / |
| Spring Rate | 235 | ±4% | N/mm |
| Hardness | 47–50 | ±2 | HRC |
OEM Part Number:55350-2Y200
Replaced by: 55350-2Y200-DS (Latest Revision)
Alternate OE: 55350-2Y201, 55350-2Y202

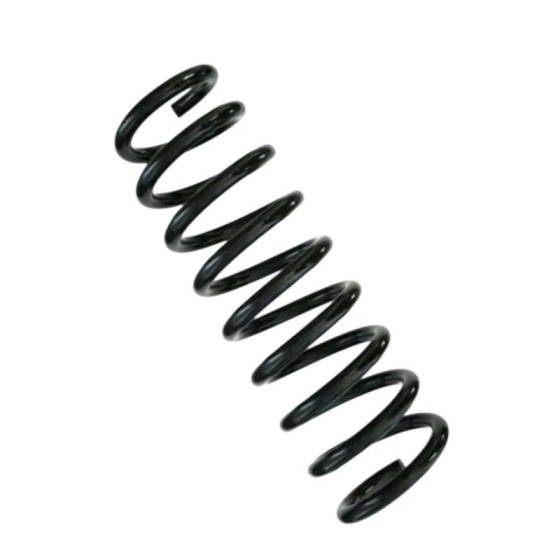

Product Name: Rear Suspension Coil Compression Spring
Application: Hyundai ix35 / Kia Sportage SL 2010–2015
Position: Rear Axle, Left & Right Universal
Weight: 3.10 kg (6.83 lbs)
Material: 55CrSi / SUP9 High Strength Chromium Silicon Spring Steel
Quality Standard: ISO/TS16949, JIS G 4801
Recommended Replacement: Replace in pairs (LH+RH)
Warranty: 1 Year / 80,000 km
