| Parameter Item | Nominal Value | Tolerance | Unit |
| Wire Diameter | 15.0 | ±0.15 | mm |
| Outer Diameter | 175.0 | ±1.5 | mm |
| Inner Diameter | 145.0 | ±1.5 | mm |
| Free Length | 355.0 | ±3.0 | mm |
| Total Coils | 7.2 | ±0.25 | Coils |
| Active Coils | 5.5 | ±0.25 | Coils |
| Direction | Right-hand | — | / |
| End Type | Closed & Ground Flat | — | / |
| Spring Rate | 245 | ±4% | N/mm |
| Hardness | 46–49 | ±2 | HRC |
OEM Part Number:54630-2B800
Replaced by: 54630-2B800-DS (Latest Revision)

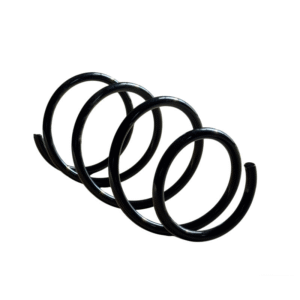

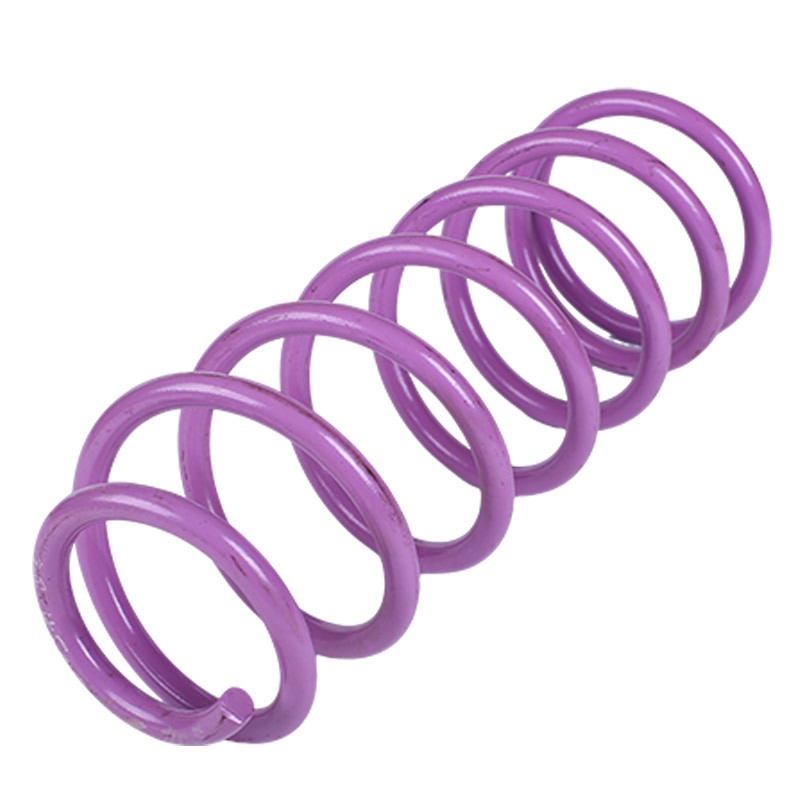

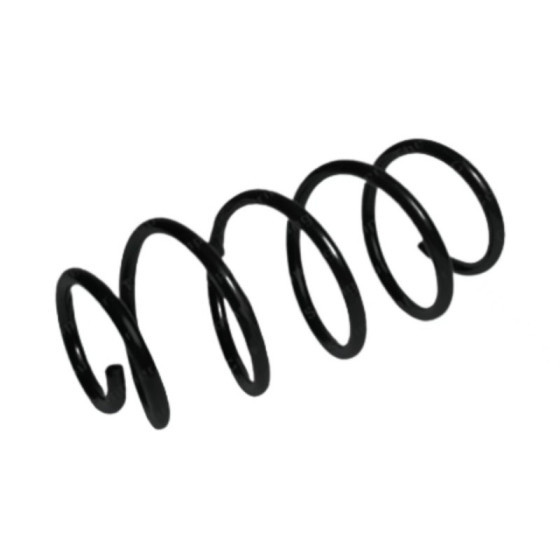

Product Name: Front Suspension Coil Compression Spring
Application: Hyundai Santa Fe (2006–2012) 2.4L / 2.7L
Position: Front Axle, Left & Right Universal
Weight: 3.15 kg (6.94 lbs)
Material: 55CrSi / SUP9 High Strength Chromium Silicon Spring Steel
Quality Standard: ISO/TS16949, JIS G 4801
Recommended Replacement: Replace in pairs (LH+RH)
Warranty: 1 Year / 80,000 km
